線性滑軌BR系列 (BRH-B & BL)
|

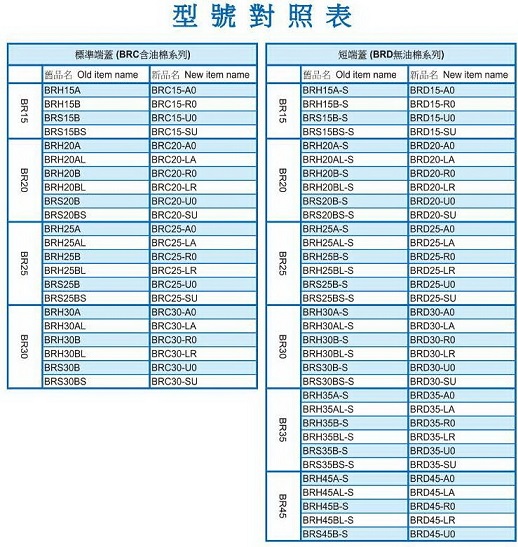

型號
|

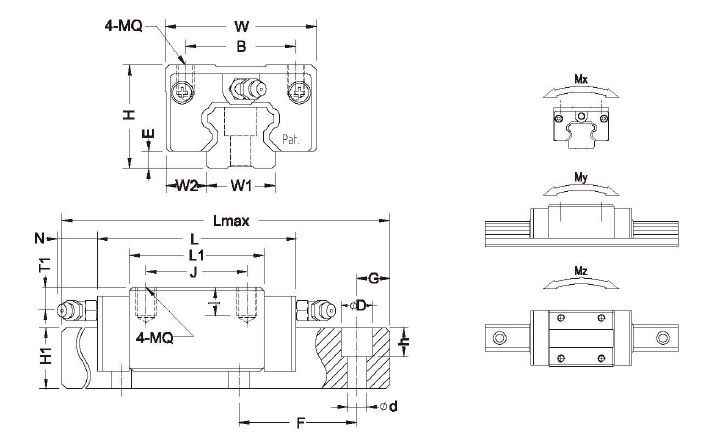

組合尺寸 (mm)
|
滑座尺寸 (mm)
|
滑軌尺寸 (mm)
|
||||||||||||
|
H
|
W
|
W2
|
E
|
L
|
B×J
|
MQ×
|
L1
|
油孔
|
T1
|
N
|
W1
|
H1
|
F
|
d×D×h
|
|
|
BRH15B
|
28
|
34
|
9.5
|
4.6
|
66
|
26×26
|
M4×6
|
40
|
Ø3
|
8.3
|
5
|
15
|
14
|
60
|
4.5×7.5×5.3
|
|
BRH20B
|
30
|
44
|
12
|
5
|
77.8
|
32×36
|
M5×8
|
48.8
|
M6×1
|
7
|
15.6
|
20
|
18
|
60
|
6×9.5×8.5
|
|
BRH20BL
|
92.4
|
32×50
|
63.4
|
||||||||||||
|
BRH25B
|
40
|
48
|
12.5
|
7
|
88
|
35×35
|
M6×10
|
57
|
M6×1
|
11.8
|
15.6
|
23
|
22
|
60
|
7×11×9
|
|
BRH25BL
|
110.1
|
35×50
|
79.1
|
||||||||||||
|
BRH30B
|
45
|
60
|
16
|
9
|
109
|
40×40
|
M8×13
|
72
|
M6×1
|
10
|
15.6
|
28
|
26
|
80
|
9×14×12
|
|
BRH30BL
|
131.3
|
40×60
|
94.3
|
||||||||||||
|
BRH35B
|
55
|
70
|
18
|
9.5
|
109
|
50×50
|
M8×13
|
80
|
M6×1
|
15
|
15.6
|
34
|
29
|
80
|
9×14×12
|
|
BRH35BL
|
134.8
|
50×72
|
105.8
|
||||||||||||
|
BRH45B
|
70
|
86
|
20.5
|
14
|
138.2
|
60×60
|
M10×16.5
|
105
|
M8×1
|
18.5
|
16
|
45
|
38
|
105
|
14×20×17
|
|
BRH45BL
|
163
|
60×80
|
129.8
|
||||||||||||
