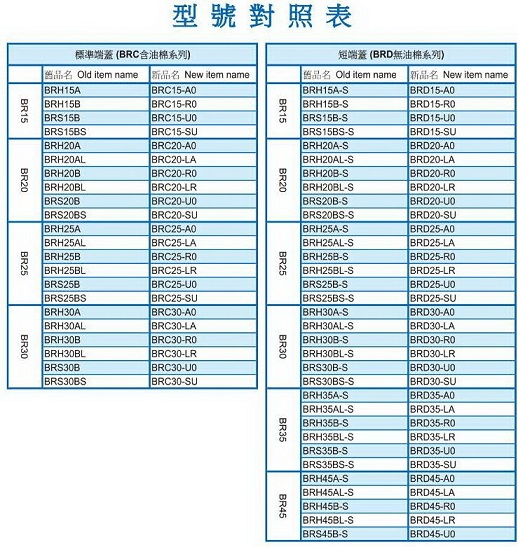

線性滑軌BR系列 (BRH-A & AL)
|
型號 |

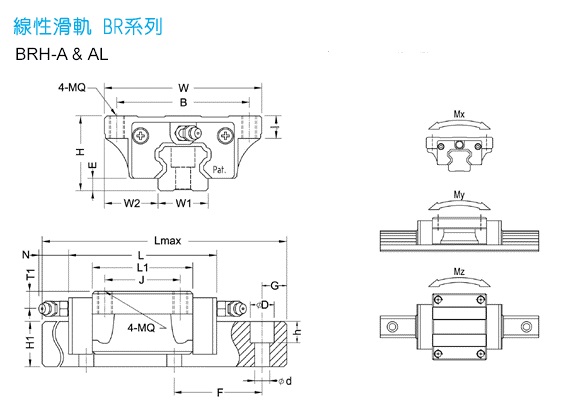

組合尺寸 (mm)
|
滑座尺寸 (mm)
|
滑軌尺寸 (mm)
|
||||||||||||
|
H
|
W
|
W2
|
E
|
L
|
B×J
|
MQ×
|
L1
|
油孔
|
T1
|
N
|
W1
|
H1
|
F
|
d×D×h
|
|
|
BRH15A
|
24
|
47
|
16
|
4.6
|
66
|
38×30
|
M5×8
|
40
|
Ø3
|
4.3
|
5
|
15
|
14
|
60
|
4.5×7.5×5.3
|
|
BRH20A
|
30
|
63
|
21.5
|
5
|
77.8
|
53×40
|
M6×9
|
48.8
|
M6×1
|
7
|
15.6
|
20
|
18
|
60
|
6×9.5×8.5
|
|
BRH20AL
|
92.4
|
63.4
|
|||||||||||||
|
BRH25A
|
36
|
70
|
23.5
|
7
|
88
|
57×45
|
M8×12
|
57
|
M6×1
|
7.8
|
15.6
|
23
|
22
|
60
|
7×11×9
|
|
BRH25AL
|
110.1
|
79.1
|
|||||||||||||
|
BRH 30A
|
42
|
90
|
31
|
9
|
109
|
72×52
|
M10×12
|
72
|
M6×1
|
7
|
15.6
|
28
|
26
|
80
|
9×14×12
|
|
BRH30AL
|
131.3
|
94.3
|
|||||||||||||
|
BRH 35A
|
48
|
100
|
33
|
9.5
|
109
|
82×62
|
M10×13
|
80
|
M6×1
|
8
|
15.6
|
34
|
29
|
80
|
9×14×12
|
|
BRH35AL
|
134.8
|
105.8
|
|||||||||||||
|
BRH 45A
|
60
|
120
|
37.5
|
14
|
138.2
|
100×80
|
M12×15
|
105
|
M8×1
|
8.5
|
16
|
45
|
38
|
105
|
14×20×17
|
|
BRH45AL
|
163
|
129.8
|
|||||||||||||
|
型號 |
參考資料 (mm)
|
基本荷重 ( kgf )
|
容許靜力矩 ( kgf×m )
|
重量
|
|||||
|
Lmax
|
G
|
動額定負荷 (C)
|
靜額定負荷 (CO)
|
Mx
|
My
|
Mz
|
滑塊 (kg)
|
滑軌 (kg/M)
|
|
|
BRH15A
|
4000
|
20
|
850
|
1350
|
10.1
|
6.8
|
6.8
|
0.21
|
1.4
|
|
BRH20A
|
4000
|
20
|
1400
|
2400
|
24
|
14.6
|
14.6
|
0.4
|
2.6
|
|
BRH20AL
|
1650
|
3000
|
30
|
23.8
|
23.8
|
0.52
|
|||
|
BRH25A
|
4000
|
20
|
1950
|
3200
|
36.8
|
22.8
|
22.8
|
0.57
|
3.6
|
|
BRH25AL
|
2600
|
4600
|
52.9
|
45.5
|
45.5
|
0.72
|
|||
|
BRH 30A
|
4000
|
20
|
2850
|
4800
|
67.2
|
43.2
|
43.2
|
1.1
|
5.2
|
|
BRH30AL
|
3600
|
6400
|
89.6
|
75.4
|
75.4
|
1.4
|
|||
|
BRH 35A
|
4000
|
20
|
3850
|
6200
|
105.4
|
62
|
62
|
1.6
|
7.2
|
|
BRH35AL
|
4800
|
8300
|
141.1
|
109.8
|
109.8
|
2
|
|||
|
BRH 45A
|
4000
|
22.5
|
6500
|
10500
|
236.3
|
137.8
|
137.8
|
2.7
|
12.3
|
|
BRH45AL
|
7700
|
13000
|
292.5
|
210.9
|
210.9
|
3.6
|
|||
