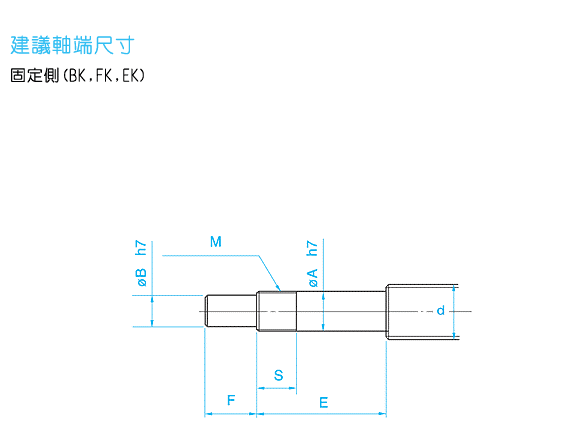

建議軸端尺寸固定側BK,FK,EK
|
型號.
|
滾珠螺桿軸外徑
|
軸承部軸外徑
|
公稱螺紋
|
||||
|
BK (Type BK)
|
d
|
A
|
B
|
E
|
F
|
M
|
S
|
|
BK 10
|
12/14/15
|
10
|
8
|
36
|
15
|
M10×1
|
16
|
|
BK 12
|
14/15/16
|
12
|
10
|
36
|
15
|
M12×1
|
14
|
|
BK 15
|
18/20
|
15
|
12
|
40
|
20
|
M15×1
|
12
|
|
BK 17
|
20/25
|
17
|
15
|
53
|
23
|
M17×1
|
17
|
|
BK 20
|
25/28
|
20
|
17
|
53
|
25
|
M20×1
|
15
|
|
BK 25
|
32/36
|
25
|
20
|
65
|
30
|
M25×1.5
|
18
|
|
BK 30
|
36/40
|
30
|
25
|
72
|
38
|
M30×1.5
|
25
|
|
BK 35
|
45
|
35
|
30
|
83
|
45
|
M35×1.5
|
28
|
|
BK 40
|
50
|
40
|
35
|
98
|
50
|
M40×1.5
|
35
|
|
型號.
|
滾珠螺桿軸外徑
|
軸承部軸外徑
|
公稱螺紋
|
|||||
|
Type FK
|
Type EK
|
d
|
A
|
B
|
E
|
F
|
M
|
S
|
|
FK 6
|
EK 6
|
8
|
6
|
4
|
28
|
8
|
M6×0.75
|
8
|
|
FK 8
|
EK 8
|
10/12
|
8
|
6
|
32
|
9
|
M8×1
|
10
|
|
FK 10
|
EK 10
|
12/14/15
|
10
|
8
|
36
|
15
|
M10×1
|
11
|
|
FK 12
|
EK 12
|
14/15/16
|
12
|
10
|
36
|
15
|
M12×1
|
11
|
|
FK 15
|
EK 15
|
18/20
|
15
|
12
|
47
|
20
|
M15×1
|
13
|
|
FK 20
|
EK 20
|
25/28/30
|
20
|
17
|
62
|
25
|
M20×1
|
17
|
|
FK 25
|
-
|
30/32/36
|
25
|
20
|
76
|
30
|
M25×1.5
|
20
|
|
FK 30
|
-
|
36/40
|
30
|
25
|
72
|
38
|
M30×1.5
|
25
|
