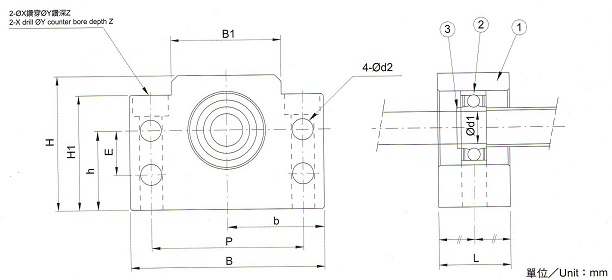

螺桿支撐座 (BF)
|
公稱型號.
|
d1
|
L
|
B
|
H
|
b
|
h
|
B1
|
H1
|
E
|
P
|
d2
|
X
|
Y
|
Z
|
|
BF 10
|
8
|
20
|
60
|
39
|
30
|
22
|
34
|
32.5
|
15
|
46
|
5.5
|
6.6
|
10.8
|
5
|
|
BF 12
|
10
|
20
|
60
|
43
|
30
|
25
|
35
|
32.5
|
18
|
46
|
5.5
|
6.6
|
10.8
|
1.5
|
|
BF 15
|
15
|
20
|
70
|
48
|
35
|
28
|
40
|
38
|
18
|
54
|
5.5
|
6.6
|
11
|
6.5
|
|
BF 17
|
17
|
23
|
86
|
64
|
43
|
39
|
50
|
55
|
28
|
68
|
6.6
|
9
|
14
|
8.5
|
|
BF 20
|
20
|
26
|
88
|
60
|
44
|
34
|
52
|
50
|
22
|
70
|
6.6
|
9
|
14
|
8.5
|
|
BF 25
|
25
|
30
|
106
|
80
|
53
|
48
|
64
|
70
|
33
|
85
|
9
|
11
|
17.5
|
11
|
|
BF 30
|
30
|
32
|
128
|
89
|
64
|
51
|
76
|
78
|
33
|
102
|
11
|
14
|
20
|
13
|
|
BF 35
|
35
|
32
|
140
|
96
|
70
|
52
|
88
|
79
|
35
|
114
|
11
|
14
|
20
|
13
|
|
BF 40
|
40
|
37
|
160
|
110
|
80
|
60
|
100
|
90
|
37
|
130
|
14
|
18
|
26
|
17.5
|
